Unveiling Acoustic Secrets: Polar Directivity Acoustics Explained

Polar directivity acoustics describes how a sound source or a sound receiver (like a microphone) radiates or picks up sound in different directions. It’s a crucial concept in audio engineering, sound reinforcement, and even architectural acoustics, influencing everything from microphone placement to loudspeaker selection. Understanding this principle allows for optimized sound quality and reduced unwanted noise.

Understanding the Fundamentals of Polar Patterns

The core of polar directivity acoustics lies in understanding polar patterns. These patterns are visual representations of a device’s sensitivity to sound from different angles relative to the device.

What are Polar Patterns?

• Polar patterns are usually depicted as a circular graph.
• The device (microphone or loudspeaker) is typically positioned at the center of the circle.
• The distance from the center of the circle to any point on the pattern represents the device’s sensitivity or sound pressure level (SPL) at that particular angle.

Key Types of Polar Patterns

Several fundamental polar patterns exist, each with unique characteristics:

1. Omnidirectional: Captures sound equally from all directions. Ideal for recording ambient sounds or capturing a group of people speaking. However, susceptible to unwanted room noise and feedback.

2. Bidirectional (Figure-8): Picks up sound primarily from the front and rear, rejecting sound from the sides. Used for stereo recording techniques and isolating two sound sources facing each other.

3. Cardioid: Sensitive to sound primarily from the front, with some pickup from the sides and rejection from the rear. A versatile pattern commonly used for vocals and instruments, offering good isolation from background noise and feedback. Sub-types exist with varying rear rejection levels.

   • Hypercardioid: More directional than cardioid, with a narrower pickup angle at the front and a small lobe of sensitivity at the rear. Provides excellent isolation but requires careful placement.
   • Supercardioid: Similar to hypercardioid but with a slightly wider front pickup angle and a smaller rear lobe. Offers a good balance between isolation and front pickup.

4. Shotgun (Lobar): Highly directional, picking up sound from a narrow angle directly in front of the microphone and rejecting sound from the sides and rear. Used in film and television production to capture distant sound sources.

Factors Influencing Polar Directivity

The polar pattern of a device isn’t fixed. Several factors can influence it:

• Frequency: As the frequency of sound changes, the polar pattern can also change. Often, a device becomes more directional at higher frequencies. This is because the wavelength of high-frequency sound is smaller, leading to more focused sound waves.

  Frequency (Hz)	Effect on Polar Pattern
  Low	Generally more omnidirectional
  High	Generally more directional

• Device Design: The physical design of the device, including the size and shape of its diaphragm or sound-emitting surface, significantly impacts its polar pattern.

• Porting and Vents: In microphones, strategically placed ports and vents behind the diaphragm are used to create pressure differences that shape the polar pattern. These ports introduce controlled cancellation of sound waves arriving from certain directions.

Applications of Polar Directivity Acoustics

Understanding polar directivity is essential in various fields:

• Microphone Placement: Choosing the right microphone with the appropriate polar pattern and placing it strategically minimizes unwanted noise, feedback, and bleed-through from other sound sources.

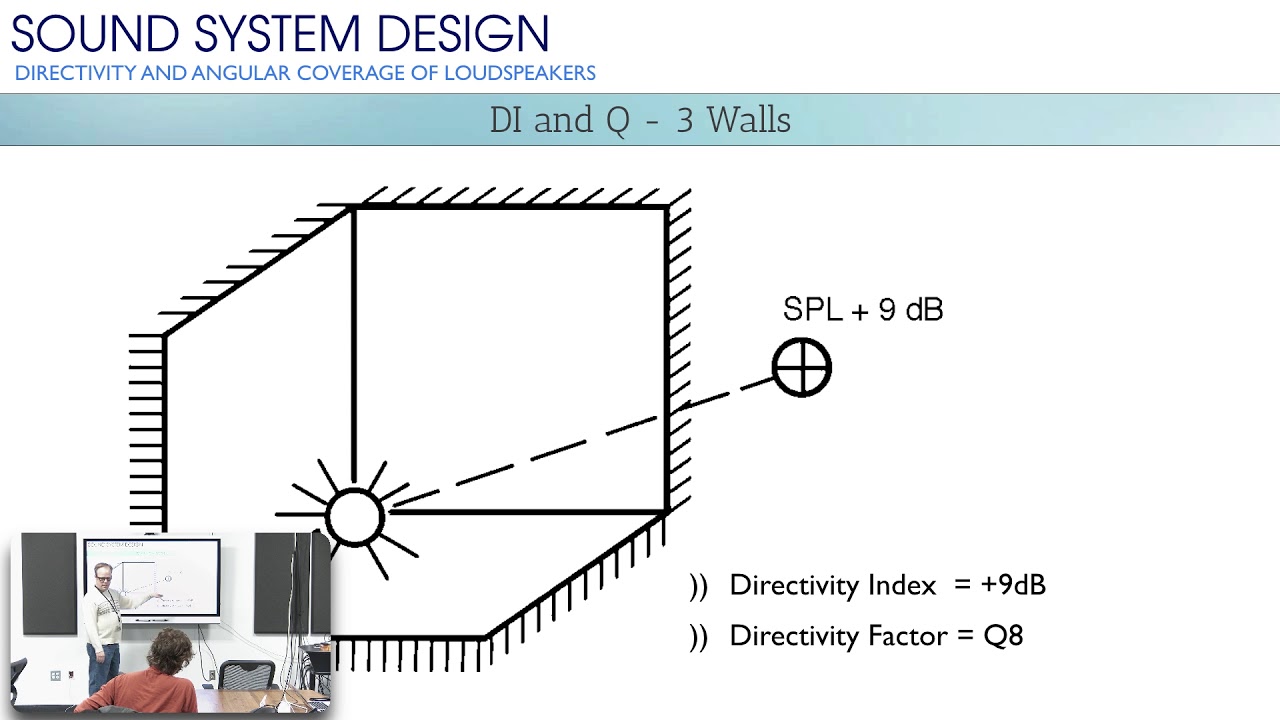

• Loudspeaker Selection and Placement: Matching the loudspeaker’s polar pattern to the room acoustics helps to ensure even sound coverage and minimize reflections that can degrade sound quality.

• Sound Reinforcement: In live sound situations, using directional microphones and loudspeakers can reduce feedback and improve clarity.

• Architectural Acoustics: Designing spaces to control sound reflections and create desired acoustic environments involves considering the directional properties of sound sources and the reflective properties of surfaces.

Measuring and Interpreting Polar Plots

Polar plots are the standardized way to represent polar directivity. Understanding how to read them is crucial.

• Axis Labels: Polar plots typically have radial lines indicating the angle of incidence (in degrees) and concentric circles indicating the relative sensitivity or SPL (in dB).

• Reading the Plot: To determine the sensitivity of a device at a particular angle, find that angle on the plot and read the corresponding value on the sensitivity scale.

• Variations in Frequency: Many manufacturers provide polar plots at different frequencies to show how the pattern changes with frequency. Analyze these plots to understand how the device will perform across the audio spectrum. Analyzing variations across frequencies gives important insights into the ‘coloration’ that a specific microphone may add to a sound source as different frequencies are picked up at different levels.

By understanding and applying the principles of polar directivity acoustics, audio professionals and enthusiasts can achieve optimal sound quality in a wide range of applications.

So, there you have it – a glimpse into the fascinating world of polar directivity acoustics! Hopefully, this gives you a better understanding of how sound spreads. Keep experimenting and exploring, and don’t be afraid to dive deeper into the science behind it all. Sound good?
