Joist Support Structures: Is Yours Strong Enough?

Understanding and Evaluating Your Joist Support Structure

This article aims to guide homeowners and DIY enthusiasts through understanding, assessing, and potentially improving their joist support structure. A strong joist support structure is critical for the safety and longevity of floors and ceilings, and knowing how to evaluate yours is a vital skill.

What is a Joist Support Structure?

A joist support structure is the system that supports floor or ceiling joists, transferring the load they bear to the foundation of a building. This system typically includes load-bearing walls, beams, columns, and, occasionally, specialized support structures like posts and footings. The primary purpose is to prevent sagging, bouncing, and potential failure of the flooring or ceiling.

Types of Joists

Before evaluating support, understanding the joists themselves is important.

• Solid Lumber Joists: Traditional joists cut from a single piece of lumber.
• Engineered Wood Joists (I-Joists): Constructed with top and bottom flanges of solid lumber or laminated veneer lumber (LVL) bonded to a web of oriented strand board (OSB).
• Truss Joists: Factory-built joists composed of individual wood members connected by metal or wood connector plates.

The type of joist used will affect the type of support needed and the potential problems that can arise.

Assessing the Strength of Your Joist Support Structure

Evaluating the strength of your joist support structure involves both visual inspection and understanding the underlying principles of load distribution.

Visual Inspection Checklist

Begin with a thorough visual inspection. Look for these common signs of weakness:

• Sagging Floors or Ceilings: Indicates potential overloading or inadequate support.
• Cracks in Walls: Especially horizontal or diagonal cracks near the joist supports. This can suggest excessive stress.
• Bouncing Floors: A common symptom of insufficient joist size or inadequate support spacing.
• Water Damage: Check for signs of rot, mold, or insect infestation, which can significantly weaken wood members.
• Damaged or Deteriorated Support Posts: Look for cracking, splitting, or leaning.
• Missing or Improperly Installed Connectors: Check for missing nails, screws, or other fasteners at connection points.
• Visible Deflection (Bending) in Beams: Suggests the beam is overloaded or undersized.

Calculating Load and Span

While professional engineering calculations are recommended for critical situations, understanding the basic principles can help identify potential problems.

1. Determine the Span: Measure the distance between supports (e.g., walls, beams, or posts) that hold the joists.
2. Estimate the Load: Consider the "dead load" (weight of the flooring, ceiling, and joists themselves) and the "live load" (weight of furniture, people, and other movable objects). Local building codes usually specify minimum live load requirements.

3. Consult Span Tables: These tables, available in building codes and online resources, provide guidance on the maximum allowable span for different joist sizes and spacings, based on the estimated load.

   • Example: A 2×8 joist spaced 16 inches apart might have a maximum allowable span of 12 feet for a typical residential floor.

   • Note: These tables are general guidelines. Conditions like concentrated loads (e.g., a heavy piano) or unusual joist spacing may require professional evaluation.

Understanding Common Support Systems

Knowing the function of each component is critical for a proper evaluation.

• Load-Bearing Walls: Walls designed to transfer the weight of the structure above down to the foundation. Identifying them can be tricky, but they are usually positioned directly above other walls or supports in the basement or crawlspace.

• Beams: Horizontal structural members that support joists across a span. Common materials include wood (solid lumber, LVL, or glulam), steel, or concrete.

• Columns/Posts: Vertical supports that transfer the load from beams to the foundation. Typically made of wood or steel.

• Footings: Concrete pads that spread the load from columns and walls over a larger area of soil, preventing settling.

Addressing Weaknesses in Your Joist Support Structure

If your assessment reveals weaknesses, consider the following options. Consulting a qualified contractor or structural engineer is always advisable before undertaking significant structural modifications.

Reinforcing Existing Joists

• Sistering: Adding a new joist alongside the existing one to increase its load-bearing capacity. This requires proper fastening (nails, screws, or bolts) to ensure the new joist acts integrally with the old one.

• Adding Bridging or Blocking: Installing solid blocking or cross-bridging between joists to prevent them from twisting or buckling.

Strengthening Beams and Supports

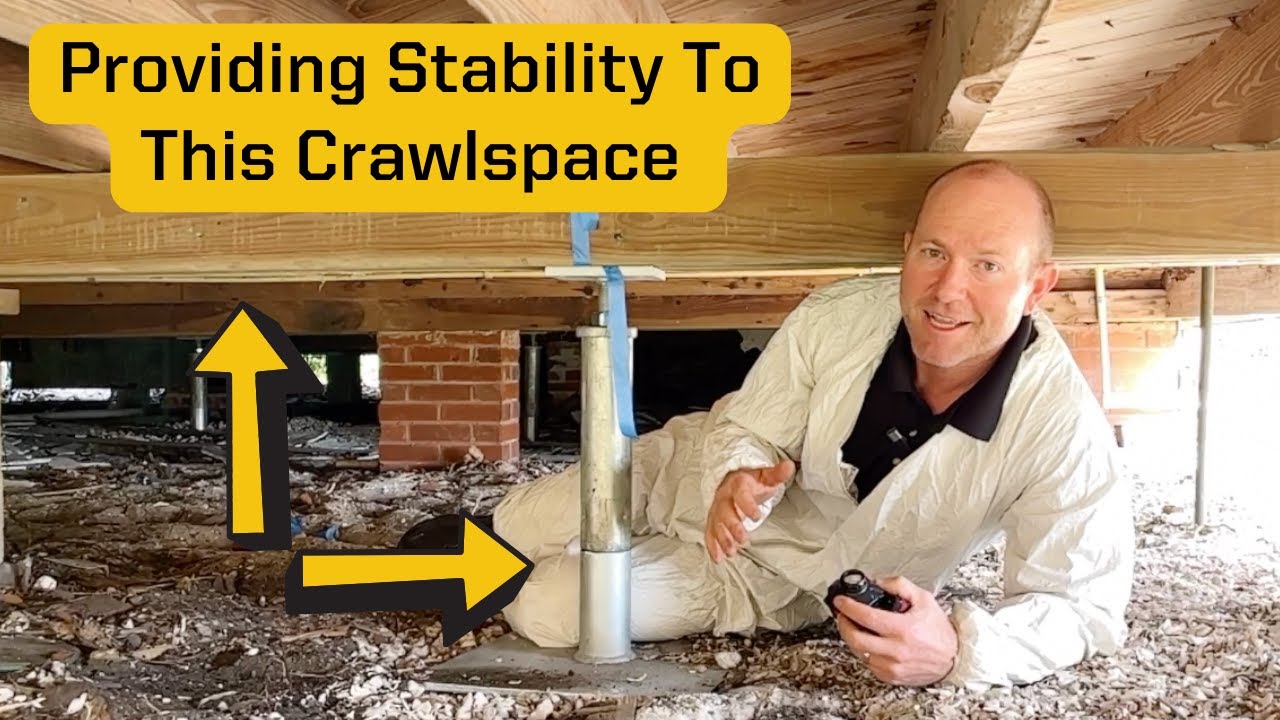

• Adding Support Columns: Installing additional columns to reduce the span of the beam and provide extra support. Ensure the columns are properly supported by footings.

• Replacing Undersized Beams: Replacing an existing beam with a larger or stronger one to handle the load.

• Reinforcing Beams with Steel Plates: Attaching steel plates to the sides of a wood beam can increase its strength.

Addressing Water Damage and Rot

• Replacing Damaged Wood: Remove and replace any rotted or insect-infested wood members.
• Identifying and Correcting the Source of Moisture: This is crucial to prevent future problems. This may involve improving drainage, repairing leaks, or increasing ventilation.

When to Call a Professional

While this guide provides a basic understanding, certain situations require the expertise of a qualified structural engineer or contractor. These include:

• Significant Sagging or Deflection
• Extensive Water Damage or Rot
• Modifications to Load-Bearing Walls
• Uncertainty about Load Calculations
• Any Situation Where You Are Unsure of the Structural Integrity of the Joist Support Structure.

Hopefully, this gave you a good handle on joist support structures and helps you make sure yours is up to snuff. If you have any questions or are still unsure about your joist support structure, don’t hesitate to consult a professional. Stay safe out there!
