Isometric projection, a form of axonometric projection utilized extensively in engineering drawings and 3D modeling software like AutoCAD, presents unique challenges when representing circular features. The fundamental question, is the diameter of a circle the same as the height in an isometric view, often arises. A circle, possessing a constant radius in Euclidean space, undergoes a transformation in isometric projection. Specifically, the apparent shape, governed by principles within orthographic projection and understood through geometric analysis, is typically an ellipse, not a circle. This article will deconstruct the geometric principles behind this distortion and clarify the relationship between diameter and height in isometric circles.

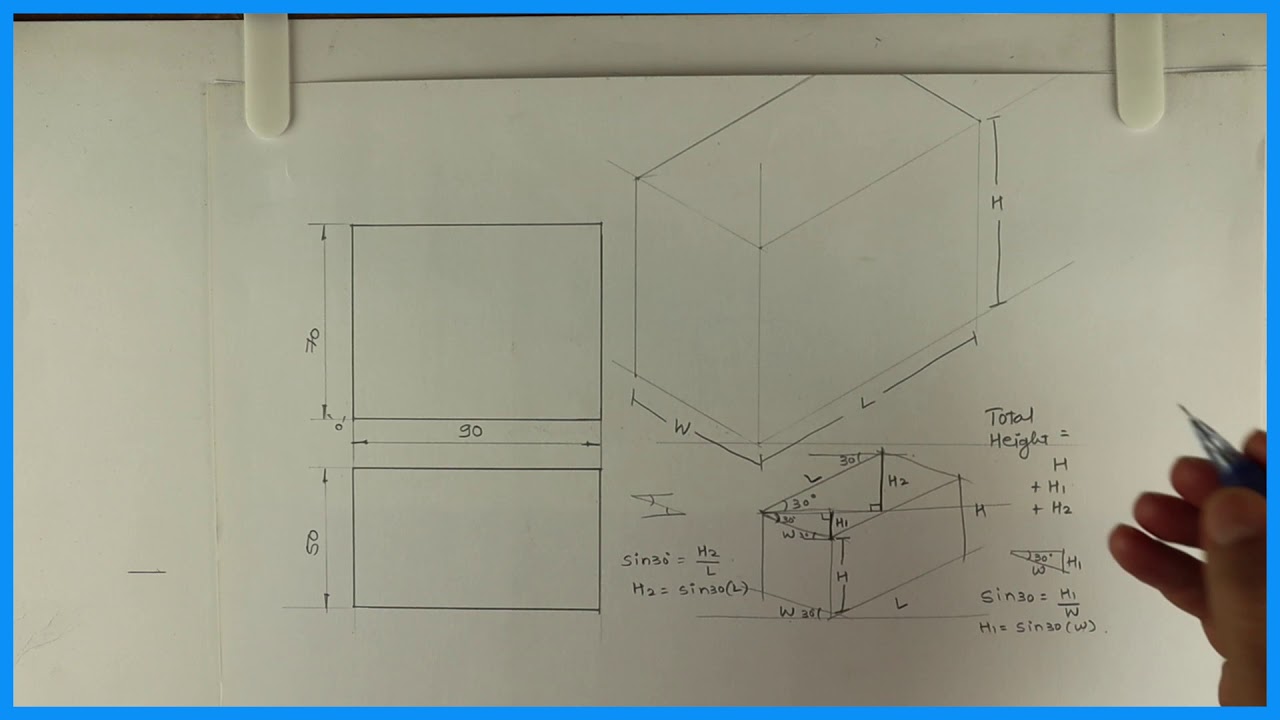

Image taken from the YouTube channel Technical Drawing , from the video titled How to find Height in Isometric box | Isometric view | Engineering drawing .
Isometric Circles: Diameter vs. Height in Isometric Projection
The core question we address is whether the diameter of a circle remains visually equivalent to its height when projected in an isometric view. Understanding this requires a clear definition of isometric projection and its impact on circular forms.
Understanding Isometric Projection
Isometric projection is a type of axonometric projection, which is a method of visually representing three-dimensional objects in two dimensions. Key characteristics include:
- Equal Angles: All three axes (typically X, Y, and Z) are foreshortened equally. This is achieved by projecting from a viewpoint at infinity. The angles between each axis are 120 degrees.
- Parallel Lines Remain Parallel: Lines parallel in the 3D object remain parallel in the 2D isometric drawing.
- No Perspective: Unlike perspective drawings, parallel lines do not converge to a vanishing point. This ensures measurements can be taken directly from the drawing, although they need to be adjusted due to the foreshortening.
The Illusion of Circles in Isometric Views
Circles, when viewed isometrically, do not appear as circles. They are transformed into ellipses. This transformation is due to the foreshortening inherent in the isometric projection.
The Effect of Foreshortening on Circular Shapes
The apparent diameter of the circle changes depending on its orientation relative to the isometric axes:
- Circle Parallel to a Plane: A circle parallel to one of the isometric planes (e.g., the XY, YZ, or XZ plane) appears as an ellipse.
- Axis Orientation: The major and minor axes of the ellipse are crucial for understanding the distorted shape.
Measuring the "Height" and "Diameter" of an Isometric Circle (Ellipse)
In an isometric view, what was originally the circle’s diameter is now represented by the major and minor axes of the resulting ellipse.
Major and Minor Axes
- Major Axis: The longest diameter of the ellipse. In an isometric projection of a circle, the major axis is equal to the original diameter of the circle. It remains unchanged in length.
- Minor Axis: The shortest diameter of the ellipse. The minor axis is shorter than the original diameter of the circle.
Calculation of Minor Axis Length
The minor axis is foreshortened. Its length can be calculated as approximately 86.6% (or √3/2) of the original diameter. This factor stems from the 30-degree angle of the isometric axes relative to the viewing plane.
Practical Examples and Visual Representation
Consider a circle with a diameter of 10 units. When projected isometrically onto the XY plane:
- The major axis of the resulting ellipse will be 10 units.
- The minor axis will be approximately 8.66 units (10 * √3/2).
This difference is visible and demonstrable through CAD software or manual isometric drawing techniques. The perception of "height" as it applies to the isometrically drawn ellipse depends on how one defines ‘height’. The original circle’s diameter is preserved by the major axis of the ellipse, but the minor axis is less than the original diameter. Therefore, when asking "is the diameter the same as the height", the answer depends on which measurement of the ellipse you consider to be representative of the circle’s "height".
Summary of Findings: Diameter vs. Height in Isometric Circles
| Feature | Description | Value Relative to Original Circle Diameter |
|---|---|---|
| Original Circle Diameter | The actual length of the circle across its center. | 100% |
| Major Axis of Ellipse | The longest diameter of the ellipse in the isometric view, coinciding with the original diameter. | 100% |
| Minor Axis of Ellipse | The shortest diameter of the ellipse in the isometric view. | ~86.6% (√3/2) |
Isometric Circles: Frequently Asked Questions
Here are some common questions regarding the appearance of circles in isometric projections. Let’s clear up any confusion about their altered dimensions.
Why does a circle look like an ellipse in an isometric drawing?
Isometric projection is a method of visually representing three-dimensional objects in two dimensions. This projection technique foreshortens the depth axis, causing circles that are perpendicular to the viewing direction to appear as ellipses. It’s a trick of perspective.
So, is the diameter of a circle the same as the height in an isometric view?
No, the diameter of a circle is not the same as the height in an isometric view. Due to the foreshortening of the axes, the isometric circle is displayed as an ellipse where the major axis corresponds to the original diameter, but the minor axis is shortened.
How much shorter is the height of an isometric circle compared to its diameter?
The height (minor axis) of an isometric circle is approximately 86.6% (or √3/2) of the diameter (major axis). This is a direct result of the 30-degree angle used in standard isometric projection which foreshortens one axis.
Can I still accurately measure a circle’s diameter from an isometric drawing?
Yes, you can, but with some caveats. You’ll need to measure along the major axis of the ellipse. This will give you the original diameter. Measuring the minor axis (the height) will not give you the original diameter; you’d need to adjust for the foreshortening.
So, hopefully, now you’ve got a clearer picture of whether **is the diameter of a circle the same as the height in an isometric view**. Go forth and conquer those isometric drawings!
